Hydraulic Fitting And Connectors

• Application
• other, Industrial / Plumbing / Water Supply

• Bend Radius
• As per fitting design

• Coating Type
• Zinc Plated / Black Painted

• Color
• Silver / Grey

• Connection
• Other, Threaded / Welded

• Connection Type
• Male / Female Threads

• Diameter
• 6 mm - 150 mm

• Flexibility
• Rigid

• Length
• As per requirement (customizable)

• Material
• Other , Mild Steel / Carbon Steel / Stainless Steel

• Material Grade
• MS IS 1239, SS 304/316, CS ASTM A106

• Outer Diameter
• 6 mm - 150 mm

• Product Type
• Other, FERRAUL FITTING

• Rated Pressure
• Up to 100 bar

• Sealing Type
• Metal-to-Metal / Gasket

• Section Shape
• Round

• Shape
• Other, Round / Cylindrical

• Standard
• Other, DIN / ASTM / IS

• Surface Treatment
• Other, Galvanized / Electroplated

• Temperature Range
• -20C to +400C

• Tensile Strength
• 350 MPa - 700 MPa

• Thickness
• 2 mm - 6 mm

• Thread Type
• BSP / NPT

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting / Hydraulic Systems

• Yield Strength
• 250 MPa - 450 MPa

• Application
• other, Industrial, Plumbing

• Coating Type
• Nickel Plated

• Color
• Golden

• Connection
• Other, Threaded

• Connection Type
• Female Thread

• Diameter
• 1 inch (25 mm)

• Flexibility
• Rigid

• Length
• 120 mm

• Material
• Brass

• Material Grade
• CW617N

• Outer Diameter
• 50 mm

• Product Type

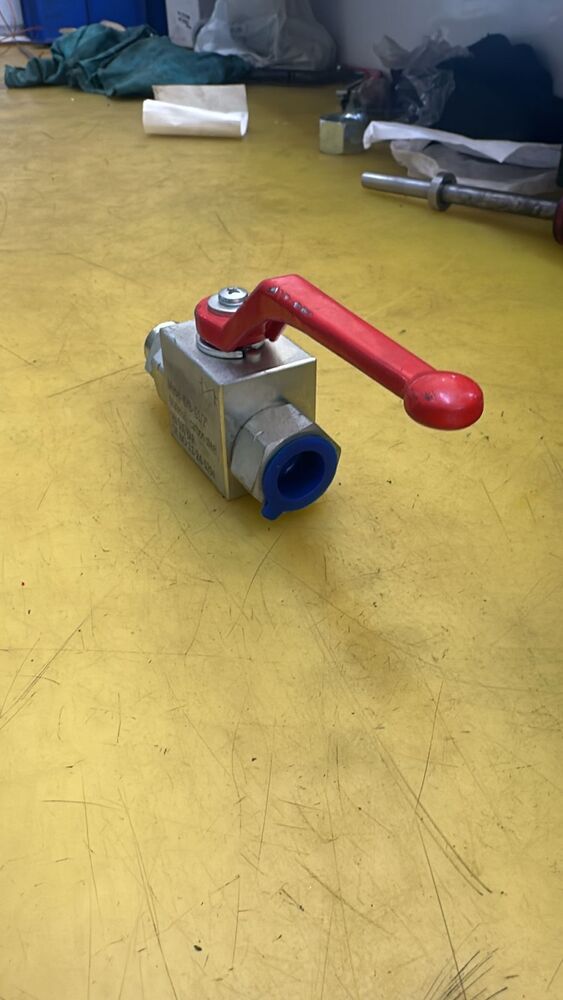

• Other, Heavy Ball Valve

• Rated Pressure
• 16 Bar

• Sealing Type
• PTFE Seat

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ISI, ASTM

• Surface Treatment
• Other, Polished

• Temperature Range
• -10C to 120C

• Tensile Strength
• 400 MPa

• Thickness
• 5 mm

• Thread Type
• BSP

• Tolerance
• 0.1 mm

• Usage
• Water and Gas Applications

• Yield Strength
• 250 MPa

• Application
• other, Hydraulic & Pneumatic Systems

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Male Thread

• Diameter
• 1/4 to 2

• Flexibility
• Rigid

• Length
• Customizable

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• Available in 1/4 to 2 sizes

• Product Type

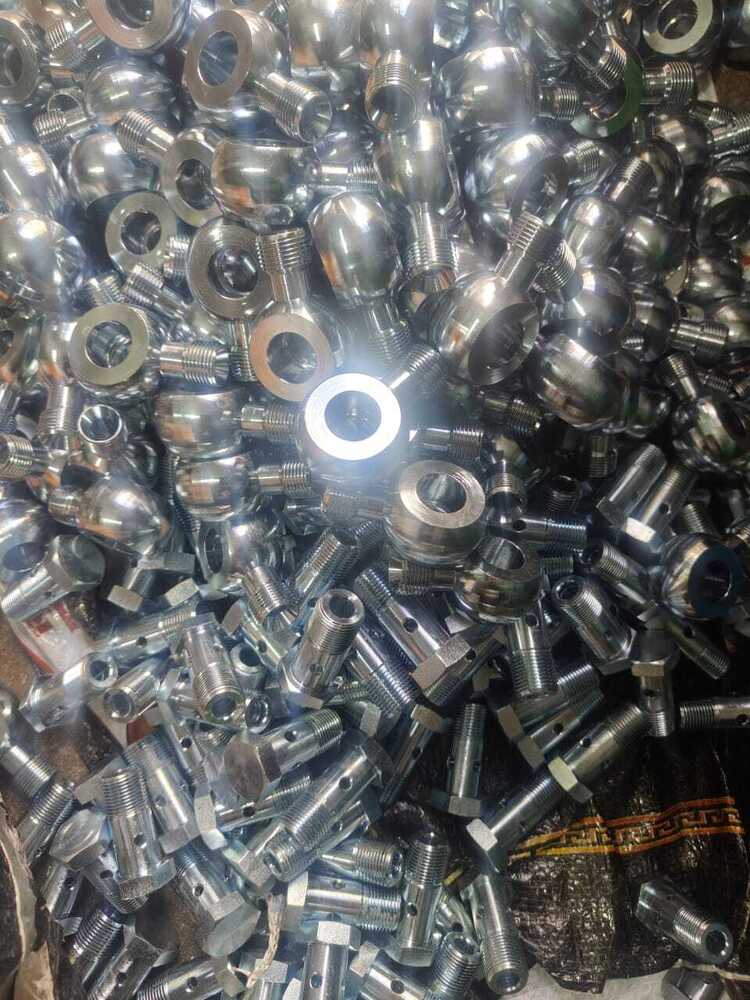

• Other, HP Nut Nipple

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Hexagonal

• Standard
• Other, ASTM A182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 515 MPa

• Thickness
• Varies (as per size)

• Thread Type
• NPT/BSPT

• Tolerance
• 0.1 mm

• Usage
• Industrial Pipe Connections

• Yield Strength
• 205 MPa

• Application
• other, Industrial Pipe and Tube Fittings

• Coating Type
• Nickel

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Male/Female

• Diameter
• 10 mm

• Flexibility
• Rigid

• Length
• 30 mm

• Material
• Brass

• Material Grade
• CW614N

• Outer Diameter
• 10 mm

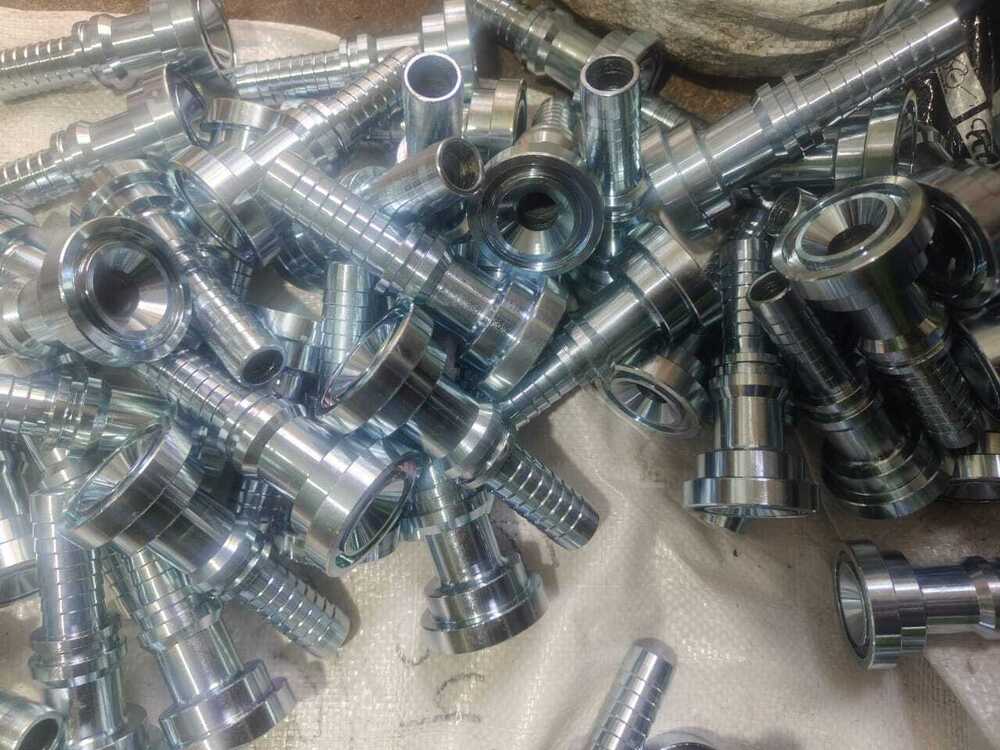

• Product Type
• Other, Metric Fitting

• Rated Pressure
• 400 bar

• Sealing Type
• O-Ring Seal

• Section Shape
• Round

• Shape
• Other, Hexagonal

• Standard
• Other, DIN 2353

• Surface Treatment
• Other, Nickel Plated

• Temperature Range
• -40C to +120C

• Tensile Strength
• 350 MPa

• Thickness
• 2 mm

• Thread Type
• Metric

• Tolerance
• 0.02 mm

• Usage
• Hydraulic Systems

• Yield Strength
• 210 MPa

• Application
• other, Water, Oil, Gas Pipelines

• Color
• Silver

• Connection
• Other, Bolt Connection

• Connection Type
• Male-Female

• Diameter
• 150 mm

• Flexibility
• Rigid

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 150 mm

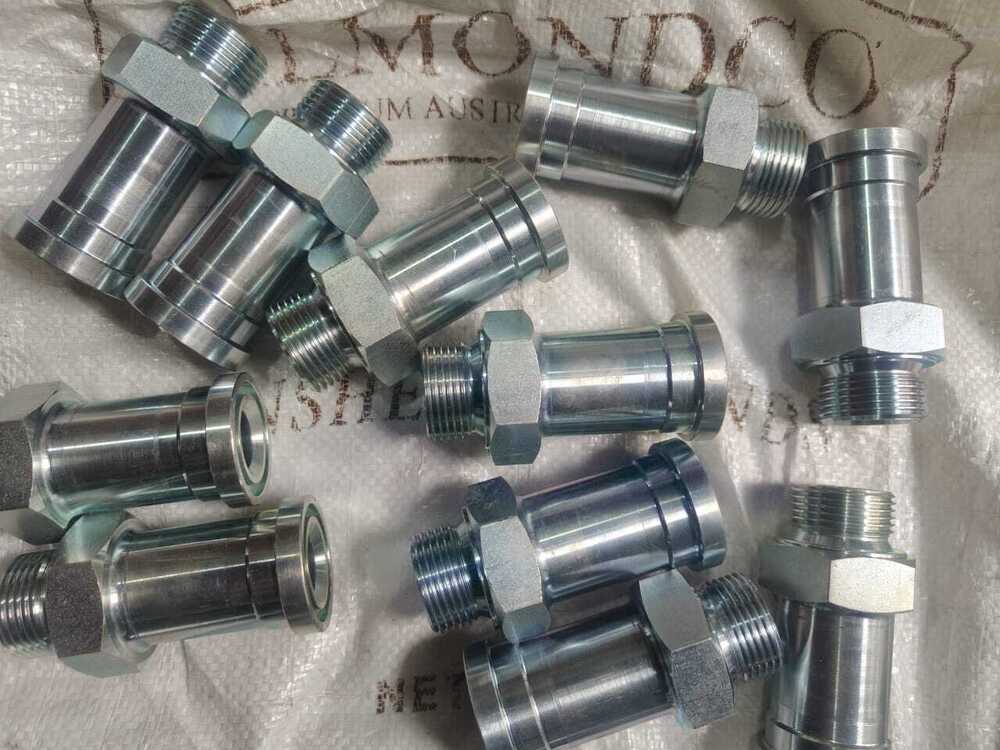

• Product Type

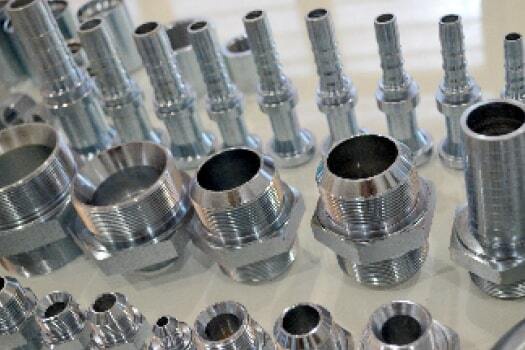

• Other, MF Flange

• Rated Pressure
• 10 Bar

• Sealing Type
• Flat Face

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ANSI, DIN, JIS

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 250C

• Tensile Strength
• 520 MPa

• Thickness
• 10 mm

• Thread Type
• Not Threaded

• Tolerance
• 0.1 mm

• Usage
• Industrial Pipe Fittings

• Yield Strength
• 210 MPa

• Application
• other, Industrial Pipe Joining

• Bend Radius
• Fixed

• Coating Type
• Zinc Coated

• Color
• Natural Silver

• Connection
• Other, Welded

• Connection Type
• Welded

• Diameter
• 50 mm

• Flexibility
• Rigid

• Length
• 100 mm

• Material
• Mild Steel

• Material Grade
• MS

• Outer Diameter
• 50 mm

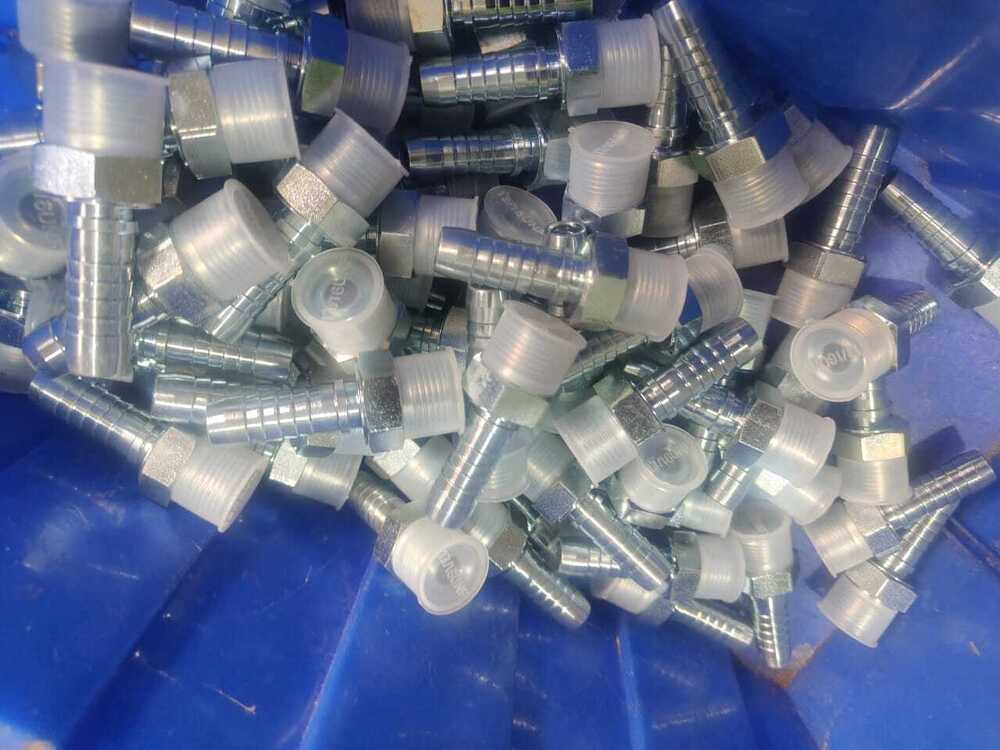

• Product Type
• Other, Misc Fitting

• Rated Pressure
• 150 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A105

• Surface Treatment
• Galvanized

• Temperature Range
• -20C to 300C

• Tensile Strength
• 400 MPa

• Thickness
• 5 mm

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting

• Yield Strength
• 250 MPa

• Application
• other, Industrial, Residential, Hydraulic, Pneumatic Systems

• Coating Type
• Nickel Plating

• Color
• Golden / Silver

• Connection
• Other, Threaded

• Connection Type
• Male Thread

• Diameter
• Varies as per Model

• Flexibility
• Rigid

• Length
• Customizable

• Material
• Brass

• Material Grade
• CW617N / C37700

• Outer Diameter
• 1/8 Inch - 2 Inch

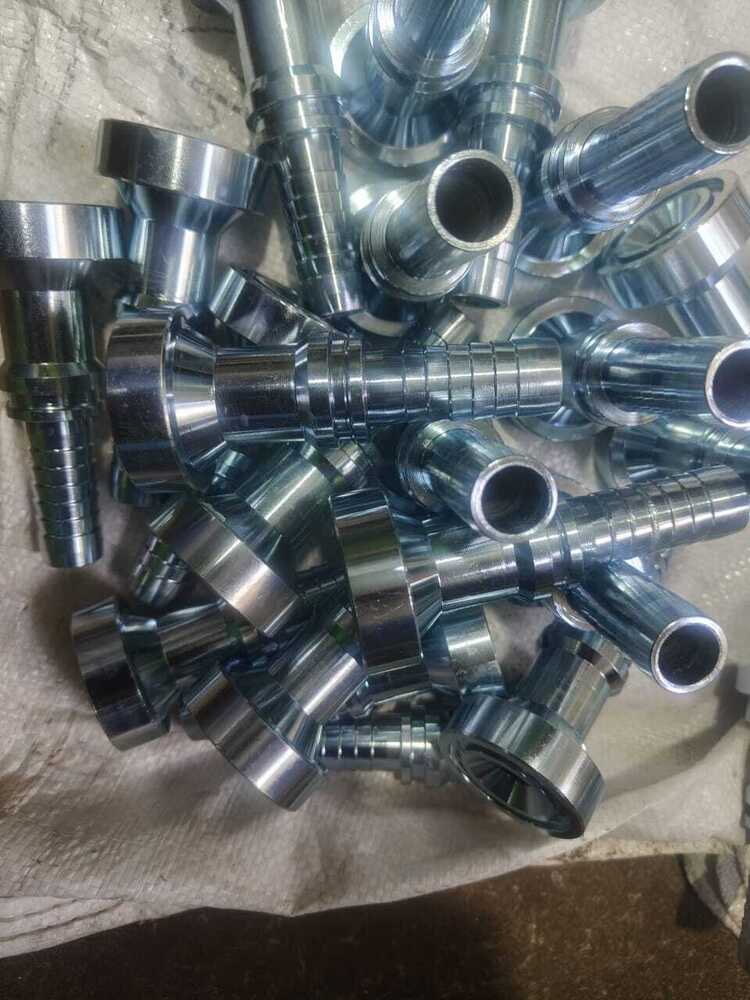

• Product Type
• Other, Male Connector

• Rated Pressure
• Up to 16 Bar

• Sealing Type
• Threaded Seal

• Section Shape
• Round

• Shape
• Other, Hexagonal

• Standard
• Other, DIN / ISO / ASME

• Surface Treatment
• Other, Nickel Plated

• Temperature Range
• -20C to 120C

• Tensile Strength
• Up to 400 MPa

• Thickness
• Custom as per requirement

• Thread Type
• BSP / NPT

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting, Plumbing, Pneumatic Connection

• Yield Strength
• Around 250 MPa

• Application
• other, For Hose Assembly in Hydraulic Lines

• Bend Radius
• Standard

• Coating Type
• Zinc / Nickel

• Color
• Silver / Yellow

• Connection
• Other, Crimped / Threaded

• Connection Type
• Female / Male / Flanged

• Diameter
• 1/4 inch to 2 inch

• Flexibility
• Medium

• Length
• Standard / Customized

• Material
• Carbon Steel

• Material Grade
• Standard / Customized

• Outer Diameter
• As Per Specification

• Product Type

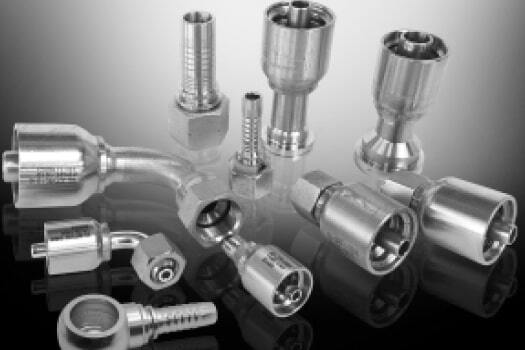

• Other, Non Skive Hydraulic Hose Fitting

• Rated Pressure
• Up to 420 Bar

• Sealing Type
• O-Ring / Metal Seal

• Section Shape
• Round

• Shape
• Other, Straight / Elbow / Tee

• Standard
• Other, DIN / SAE / ISO

• Surface Treatment
• Other, Zinc Plated / Chromated

• Temperature Range
• -40C to +120C

• Tensile Strength
• High

• Thickness
• Customizable

• Thread Type
• BSP / NPT / JIC / Metric

• Tolerance
• 0.1 mm

• Usage
• Hydraulic Systems / Industrial Applications

• Yield Strength
• As per Material Grade

• Application
• other, Air, Gas Systems

• Coating Type
• Electroless Nickel

• Color
• Silver

• Connection
• Other, Push to Connect

• Connection Type
• Push Fit

• Diameter
• 6 mm

• Flexibility
• Rigid

• Length
• 35 mm

• Material
• Brass

• Material Grade
• CW614N

• Outer Diameter
• 6 mm

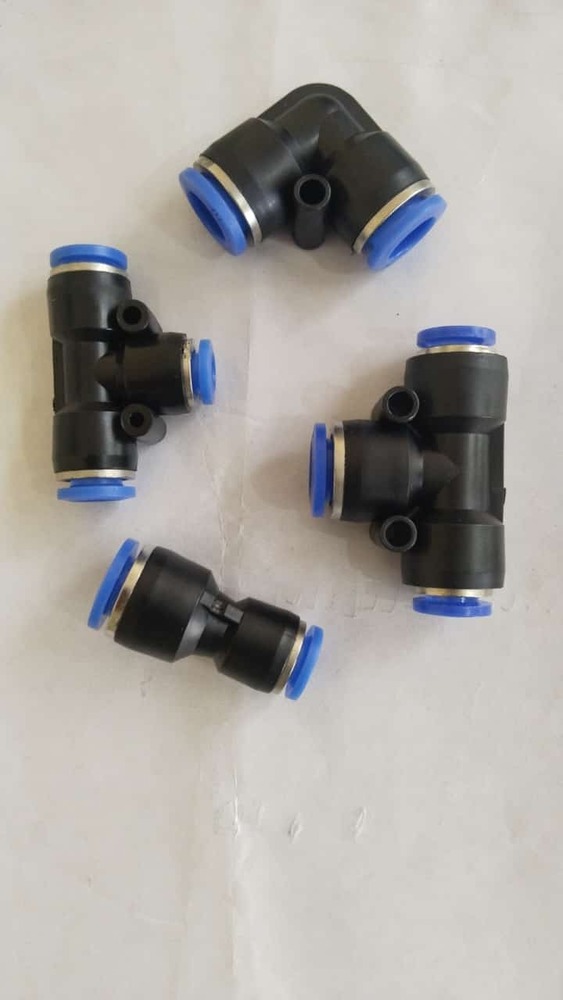

• Product Type
• Other, Pneumatic T E C Connector

• Rated Pressure
• 0-16 Bar

• Sealing Type
• NBR O-Ring

• Section Shape
• Round

• Shape
• Other, T-Shaped

• Standard
• Other, ISO 4414

• Surface Treatment
• Other, Nickel Plated

• Temperature Range
• -20C to +80C

• Tensile Strength
• 360 MPa

• Thickness
• 2 mm

• Thread Type
• BSPT

• Tolerance
• 0.1 mm

• Usage
• Pneumatic Pipe Fittings

• Yield Strength
• 250 MPa

• Application
• other, Air flow distribution in pneumatic systems

• Color
• Blue & Black

• Connection
• Other, Push Fit

• Connection Type
• Push-in / Quick Connect

• Diameter
• Available in multiple diameters

• Flexibility
• Rigid

• Length
• Approx. 35-50 mm (varies with size)

• Material
• Other , Polypropylene (PP)

• Material Grade
• Industrial Grade

• Outer Diameter
• 6 mm / 8 mm / 10 mm / 12 mm

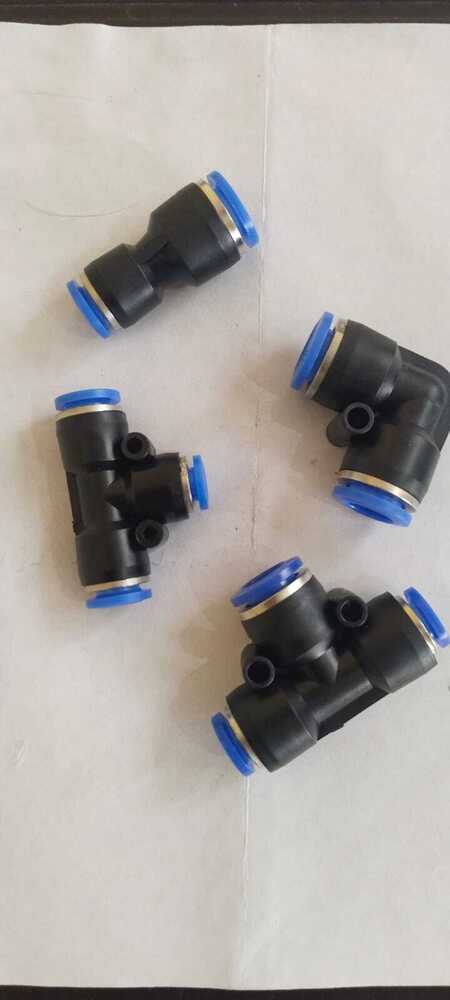

• Product Type
• Other, Pneumatic Tee

• Rated Pressure
• 0-10 Bar

• Sealing Type
• NBR O-Ring

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ISO 4414 / DIN 2353

• Surface Treatment
• Other, Smooth / Uncoated

• Temperature Range
• -20C to +60C

• Tensile Strength
• 30 MPa (approx)

• Thickness
• 3 mm (approx)

• Thread Type
• None (Tube Fitting)

• Tolerance
• 0.1 mm

• Usage
• Pneumatic piping and air circuits

• Application
• other, Pipe Fitting, Industrial Connections

• Bend Radius
• Fixed, Not Applicable

• Coating Type
• Anti-corrosive

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Male Thread

• Diameter
• 16 mm

• Flexibility
• Rigid

• Length
• 60 mm

• Material
• Stainless Steel

• Material Grade
• SS304

• Outer Diameter
• 16 mm

• Product Type

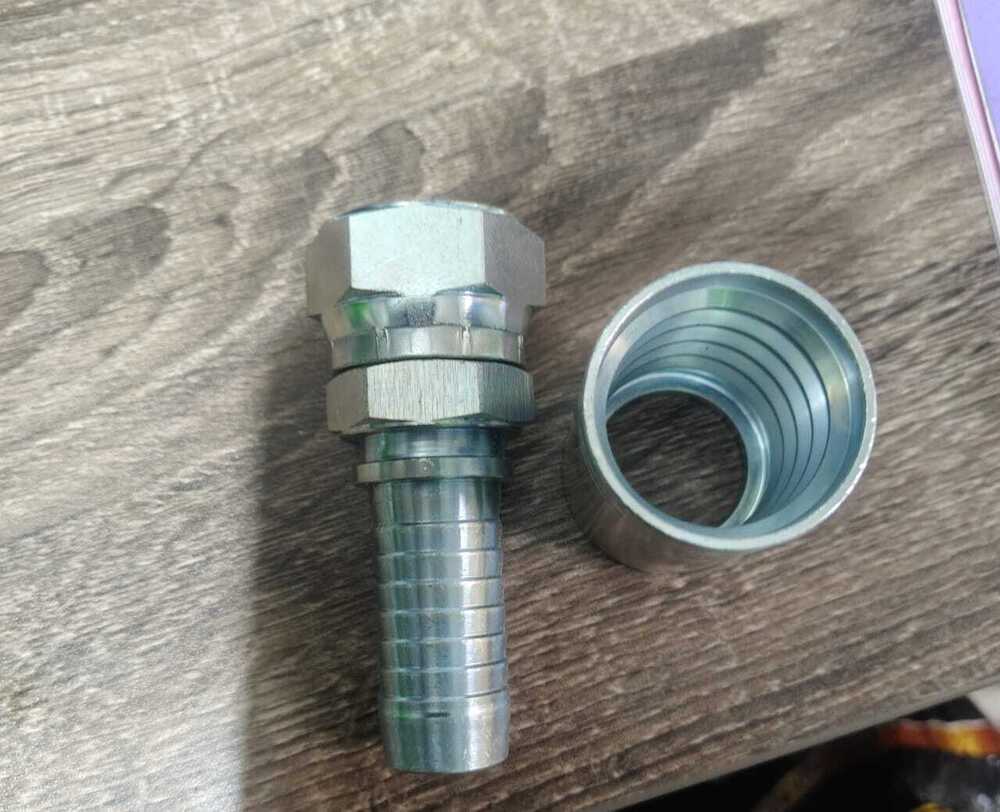

• Other, Pre Crimp Nipple

• Rated Pressure
• Up to 250 Bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, DIN, ISO, BSP, NPT

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +200C

• Tensile Strength
• 520 MPa

• Thickness
• 2 mm

• Thread Type
• BSP/NPT

• Tolerance
• 0.05 mm

• Usage
• Hydraulic, Pneumatic, Plumbing Applications

• Yield Strength
• 210 MPa

• Application
• other, Pipe Connection in Hygienic Fluid Processes

• Color
• Silver

• Connection
• Other, Tri-Clamp

• Connection Type
• Clamp Type

• Diameter
• 12.7 mm - 152.4 mm

• Flexibility
• Rigid

• Length
• Customizable as per requirement

• Material
• Other , Stainless Steel 304

• Material Grade
• SS 304

• Outer Diameter
• 1/2 inch to 6 inch (12.7 mm - 152.4 mm)

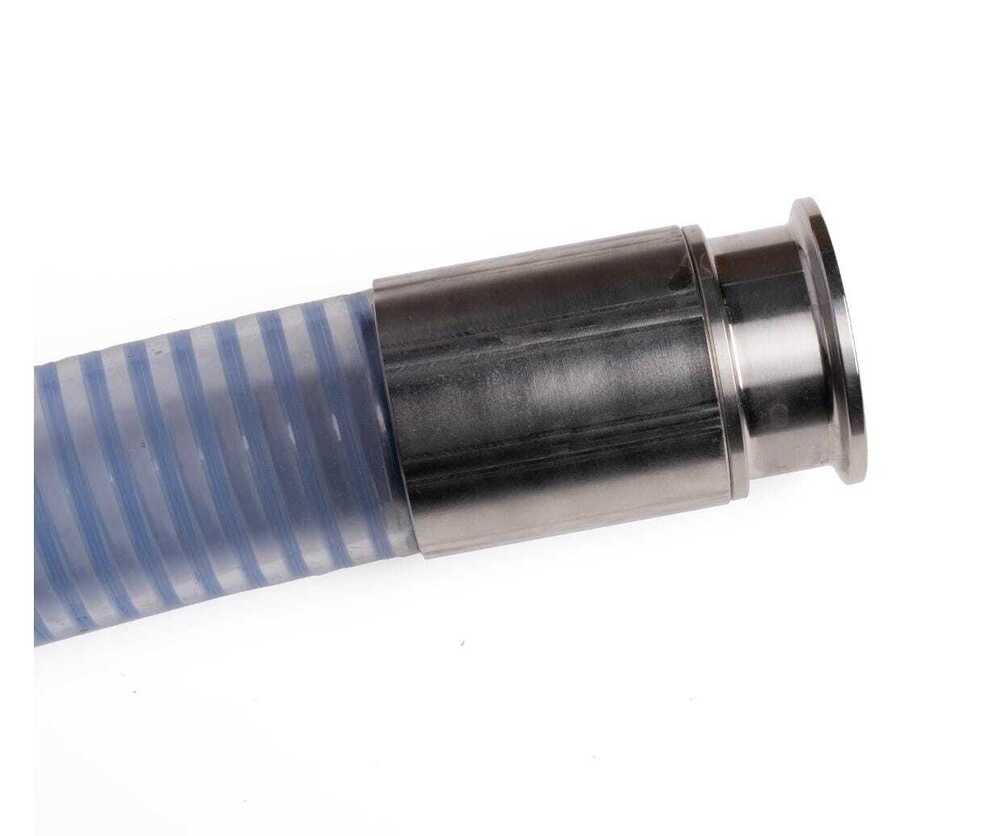

• Product Type
• Other, TC (Tri-Clamp) Fitting

• Rated Pressure
• 10 bar (145 psi)

• Sealing Type
• Gasket Sealed

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A403, ASME BPE

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +200C

• Tensile Strength
• 515 MPa

• Thickness
• 1.2 mm - 3 mm

• Tolerance
• 0.02 mm

• Usage
• Sanitary, Pharmaceutical, Food & Beverage, Dairy Industry

• Yield Strength
• 205 MPa

• Application
• other, Hydraulic and Pneumatic Systems

• Bend Radius
• 40 mm

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Male/Female Threaded

• Diameter
• 25 mm

• Flexibility
• Rigid

• Length
• 70 mm

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 25 mm

• Product Type
• Other, UNF Bend

• Rated Pressure
• Up to 300 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Bend (Curved)

• Standard
• Other, ASME/ANSI B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +200C

• Tensile Strength
• 520 MPa

• Thickness
• 2.5 mm

• Thread Type
• UNF (Unified Fine Thread)

• Tolerance
• 0.05 mm

• Usage
• Industrial Pipe Fitting

• Yield Strength
• 205 MPa

• Application
• other, Fluid Transfer

• Coating Type
• Nickel plating

• Color
• Golden

• Connection
• Other, Threaded

• Connection Type
• Male

• Diameter
• 1/2 inch

• Flexibility
• Rigid

• Length
• 25 mm

• Material
• Brass

• Material Grade
• CW617N

• Outer Diameter
• 12 mm

• Product Type
• Other, UNF Fitting

• Rated Pressure
• 250 Bar

• Sealing Type
• O-Ring Seal

• Section Shape
• Round

• Shape
• Other, Hexagonal

• Standard
• Other, ASTM B16.22

• Surface Treatment
• Other, Electroplated

• Temperature Range
• -20C to 120C

• Tensile Strength
• 350 MPa

• Thickness
• 2.5 mm

• Thread Type
• UNF (Unified National Fine)

• Tolerance
• 0.01 mm

• Usage
• Hydraulic and Pneumatic Applications

• Yield Strength
• 210 MPa

• Application
• other, Plumbing, Washing Machines

• Bend Radius
• Fixed

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Male Thread

• Diameter
• 18 mm

• Flexibility
• Rigid

• Length
• 80 mm

• Material
• Stainless Steel

• Material Grade
• SS304

• Outer Diameter
• 18 mm

• Product Type
• Other, Washing Fitting

• Rated Pressure
• 10 bar

• Sealing Type
• Rubber Washer

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ISI

• Surface Treatment
• Other, Polished

• Temperature Range
• 0C to 90C

• Tensile Strength
• 520 MPa

• Thickness
• 1.5 mm

• Thread Type
• BSP

• Tolerance
• 0.02 mm

• Usage
• For Washing Machine Connection

• Yield Strength
• 230 MPa

• Application
• other, Oil, Gas, Chemical, Water Pipeline

• Coating Type
• Anti-rust Coating

• Color
• Silver

• Connection
• Other, Bolted

• Connection Type
• Flanged

• Diameter
• 100 mm

• Flexibility
• Rigid

• Length
• 30 mm

• Material
• Stainless Steel

• Material Grade
• SS304

• Outer Diameter
• 150 mm

• Product Type
• Other, Flange Connector

• Rated Pressure
• PN16

• Sealing Type
• Flat Face

• Section Shape
• Other, Circle

• Shape
• Round

• Standard
• Other, ASME B16.5

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 520 MPa

• Thickness
• 10 mm

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting

• Yield Strength
• 205 MPa
